Xingang Biomimetic Products Ultra Thin Fiberboard
THICKNESS : 0.5-30MM
GLUE : Xingang Biomimetic Adhesive
CORE : BIRCH / POPLAR / HARDWOOD / COMBI
Send Inquiry
Product Details ofXingang Biomimetic Products Ultra Thin Fiberboard
| Products Detail | ||||
| Product name | Xingang Biomimetic ultra-thin fiberboard | |||
| Species | Pine Wood Imported from New Zealand | |||
| Size | 1220x2440mm,2100x2800mm,1830x2440mm or as request | |||
| Grade | ENF | Glue | Xingang Biomimetic Adhesive | |
| Basic Parameters | ||||
| Items | Unit | Standard | Value of test | Result |
| Density | g/cm³ | ≥0.80 | 1.06 | PASS |
| Bending Strength | MPa | ≥42.0 | 68.8 | |
| Internal Bonding Strength | MPa | ≥1.20 | 2.87 | |
| Surface bonding strength | MPa | ≥1.20 | 2.49 | |
| Thickness expansion rate of water absorbing | % | ≤35.0 | 22.8 | |
| Moisture Content | % | 3.0~13.0 | 7.0 | |
| Formaldehyde Emission | mg/m³ | Enf-Grade≤0.025 | 0.017 | |

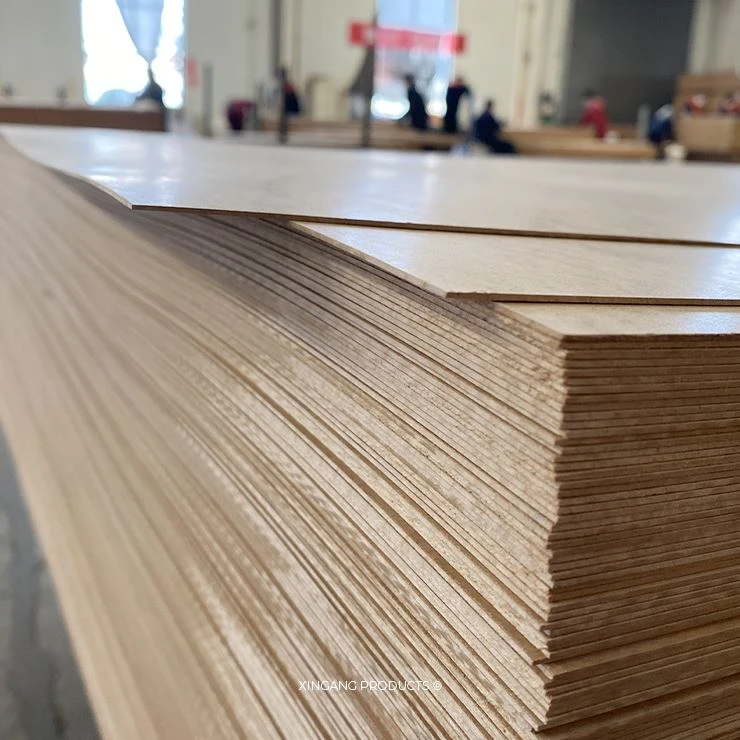

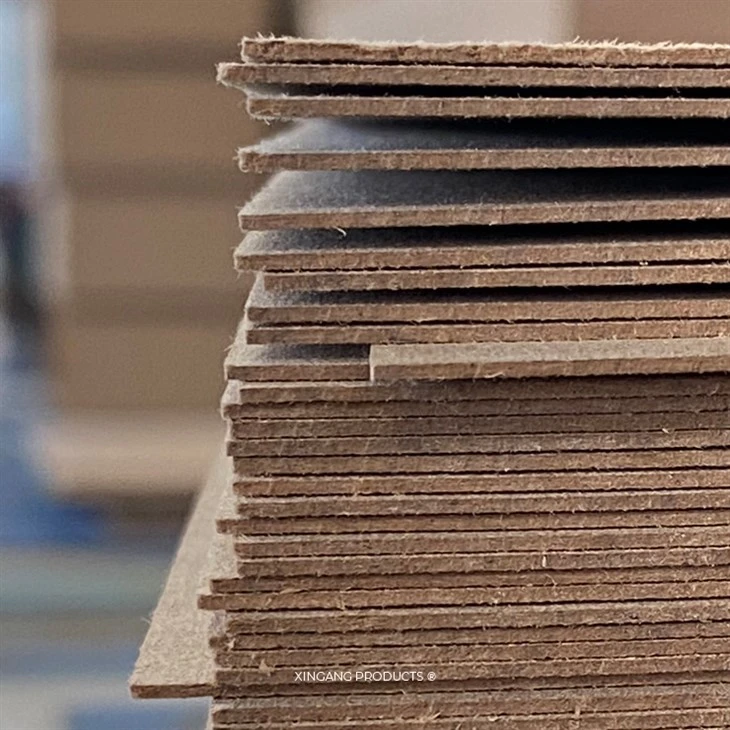

Xingang Biomimetic Ultra Thin Fiberboard
Xingang is a good choice for the customer to purchase in one station.
raw material
- Durable and sturdy New Zealand radiation pine
Xingang Biomimetic Ultra thin Fiberboard is made of high-quality New Zealand radiation pine as raw material, and is developed by the industry-leading Asian Union ultra-thin dedicated line in collaboration with Xingang Group and the team of Academician Li Jian from Northeast Forestry University to create Xingang Biomimetic Adhesive; Special for lamination, with good surface flexibility technology, it can better adapt to the wide range of substrate moisture content changes, and pressure pasting is worry free, rejecting bursting,cracking and edge collapse, with good weather resistance..
GLUE
- Xingang Biomimetic Adhesive
Originating from biomimetic thinking and seeking inspiration from nature for primitive innovation, under the leadership of Academician Li Jian from Northeast Forestry University, Professor Xiao Shaoliang and other core team members worked tirelessly and diligently to overcome challenges. After more than 10 years, they successfully developed a new environmentally friendly, low-carbon, and formaldehyde free adhesive - biomimetic adhesive..
XIingang Ultra Thin Fiberboard Equipment Process
01.
Mobile wood chip cultivation silo and dual systems of water washing and air selection
- Wood chips for cultivation, uniform moisture content, and purity
- Maintain fiber integrity, improve fiber quality, and enhance board quality strength;
- Improve the stability of the board and make the appearance more beautiful.
02.
Andritz thermal mill
- High safety, automatic adjustment of grinding disc clearance;
- Fully intelligent control of cooking time and material level height;
- Adapted to various raw materials, with high fiber yield.
03.
High precision dual control high-pressure glue application system
1. Unique explosive spray pipe design for more even glue application:
2. The glue solution has high water solubility and excellent atomization effect;
3. E+H high-precision electromagnetic and mass flow meters ensure precise fiber gluing.
04.
Asia United Ultra High Speed Continuous Flat Press
- Preheating and steam spraying system enhances the strength of slab damage, improves production capacity, and quickly discharges air from the slab;
- The flexible inlet section of the adjustable press ensures smooth entry of the slab at high speed, perfect surface quality of the product, and controllable high-density layer;
- High precision plate thickness control, with a deviation within 0.01mm and true work displayed within millimeters.
