Birch Plywood Panels For CNC Routing
Birch Plywood Panels for CNC Routing
13-layer all-birch core engineered for clean, tear-out-free cuts on CNC routers and laser cutters. Void-free bonding means predictable tool paths every time.
Request a Quote
Why Machinists Choose Our Birch Plywood
Consistent density across every sheet means predictable feeds, speeds, and results.
Void-Free Core
No internal gaps, no resin pockets. German hot-press technology ensures solid, uniform density from edge to edge - your router bits last longer and cut cleaner.
Minimal Tear-Out
Cross-laminated birch veneers resist chipping along cut lines. Ideal for intricate patterns, joinery, and pocket cuts that demand crisp edges.
Flat & Stable
Balanced 13-ply construction resists warping. Sheets stay flat on your vacuum table during long production runs - no lifting at corners.

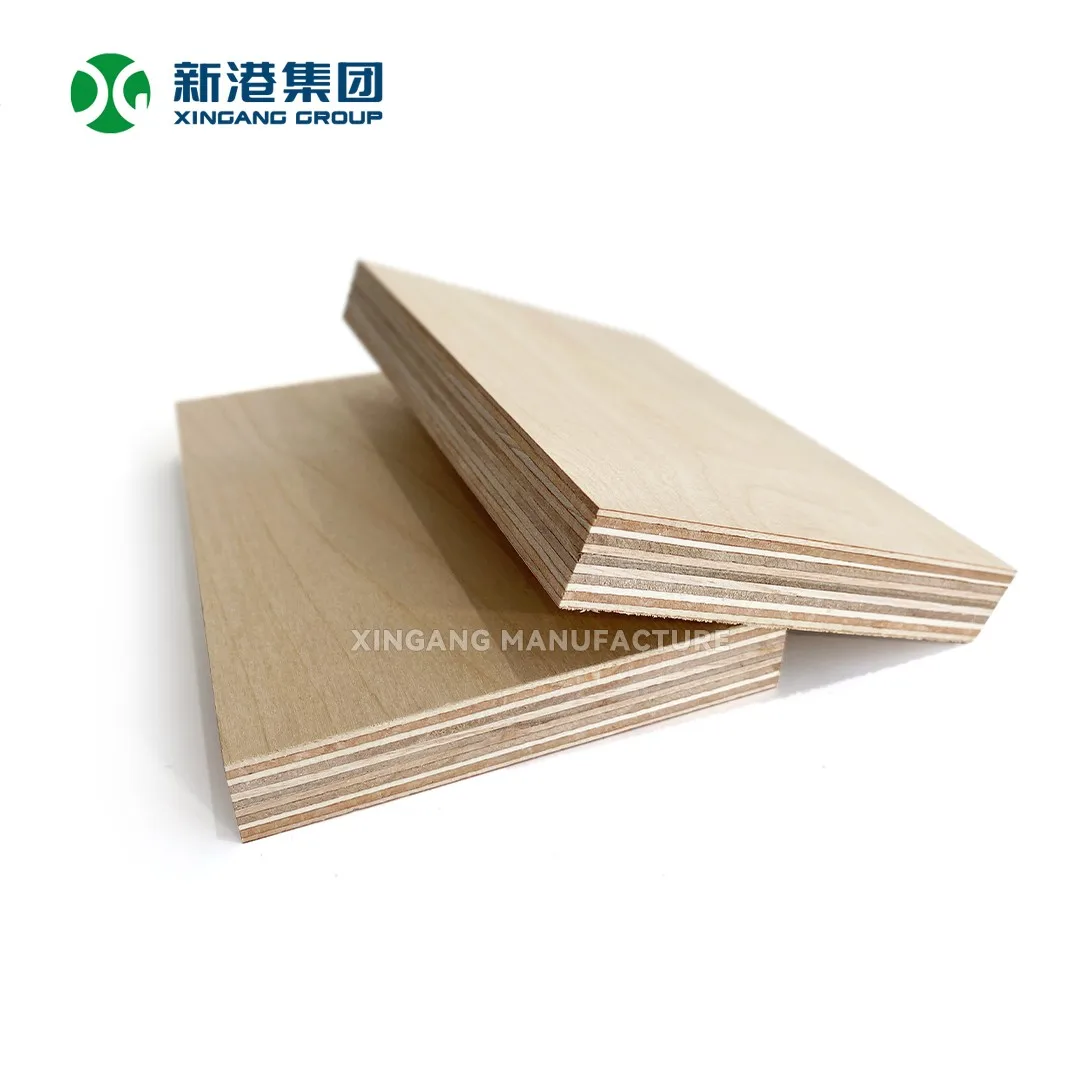

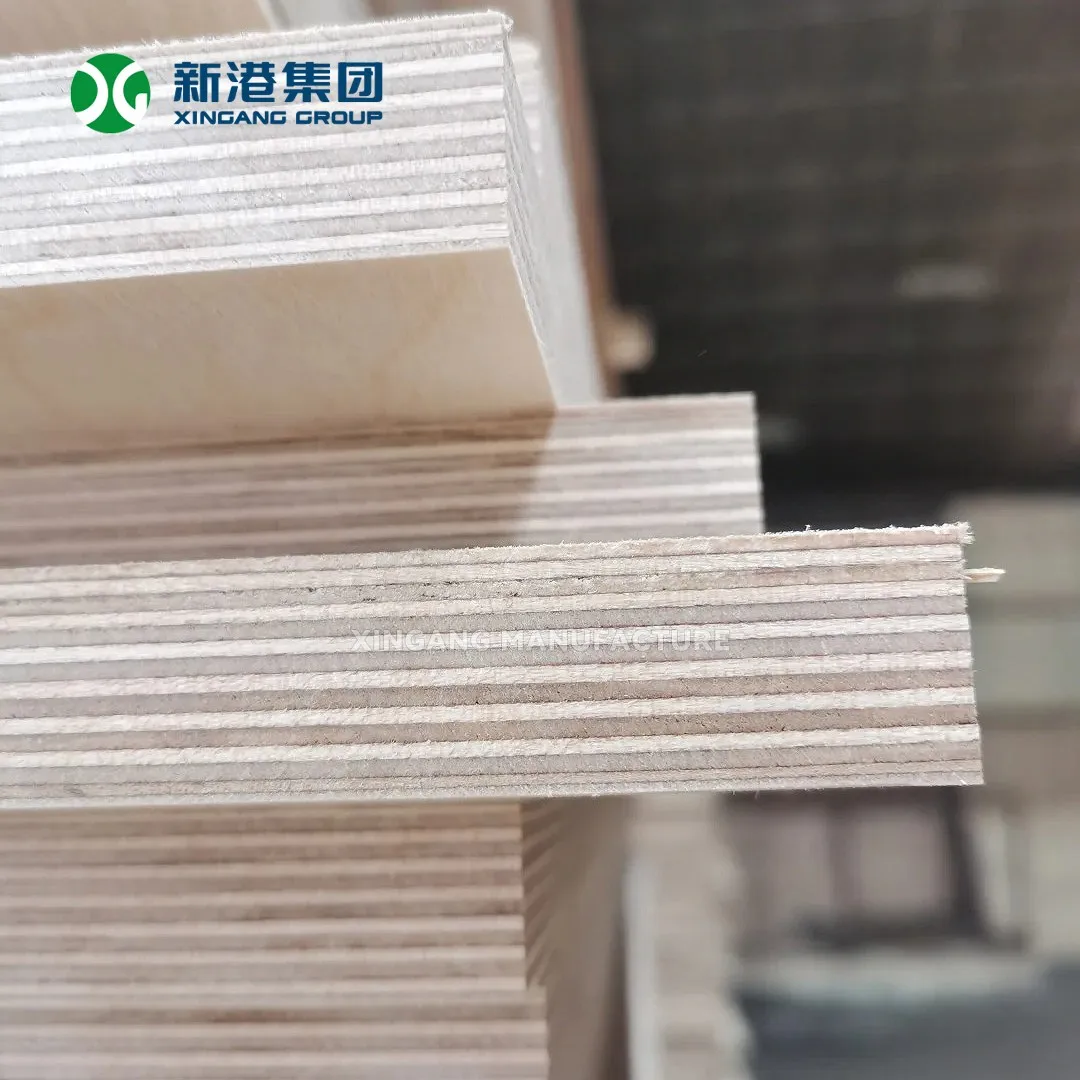

13 Layers, One Solid Core
Each 1.4mm birch veneer is cross-oriented at 90° to the adjacent layer, bonded under 1.2MPa of pressure with WBP phenolic resin. The result: a panel that machines like solid wood but with superior stability.
Double-sided 180-grit sanding means you can go straight from the pallet to the machine - no surface prep needed.
Technical Specifications
Standard configurations. Custom sizes and thicknesses available.
| Species | Birch (Betula spp.), rotary-cut, BB/BB |
| Core | 100% birch, 13 plies at 18mm |
| Thicknesses | 4 / 6 / 9 / 12 / 15 / 18 / 21 / 25 mm |
| Size | 1220 × 2440 mm / 1250 × 2500 mm |
| Glue | WBP phenolic (EN 314-2 Class 3) |
| Emission | E1 ≤ 1.5 mg/L - CARB P2 |
| Surface | Sanded two sides, 180-grit |
| Density | ~680 kg/m³ |

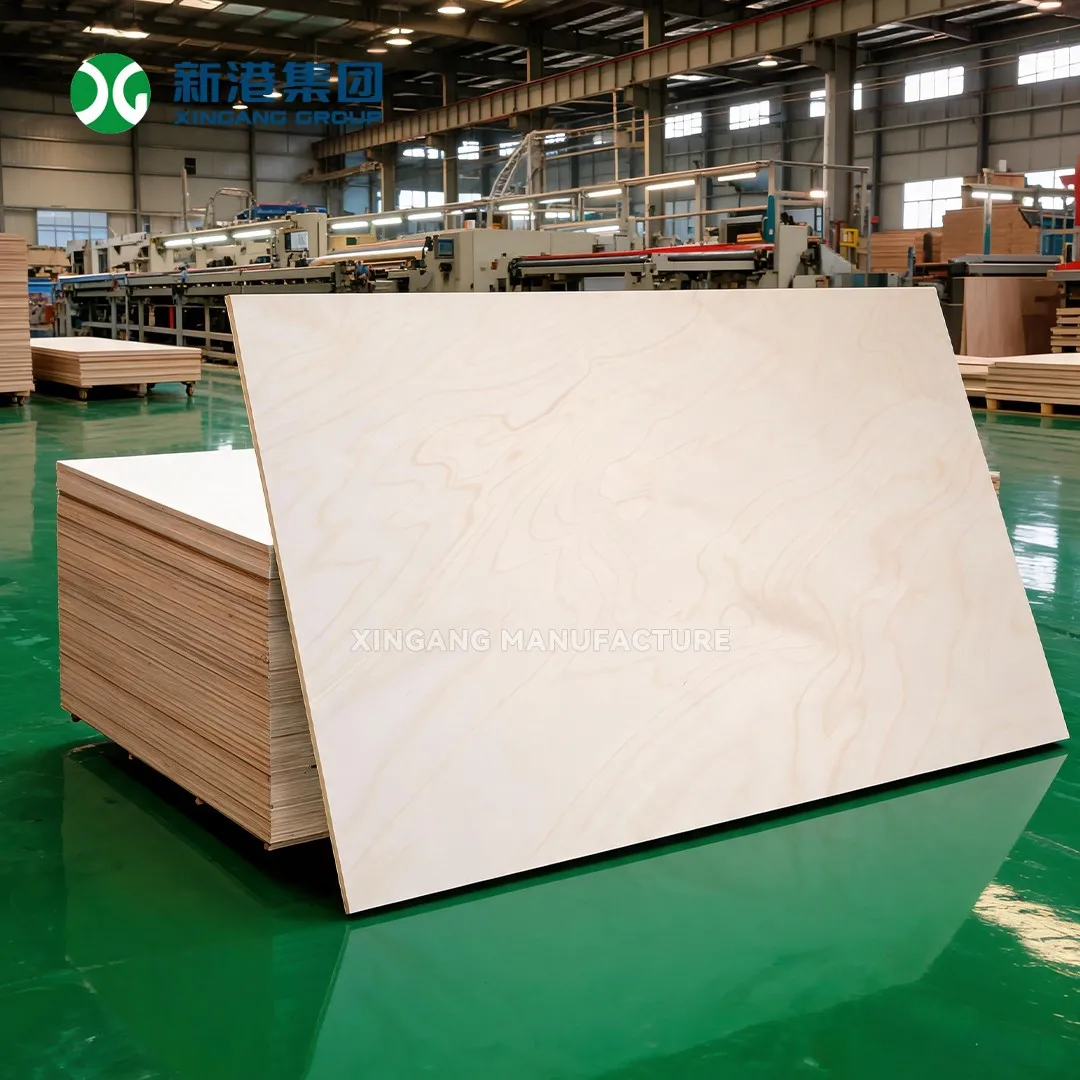

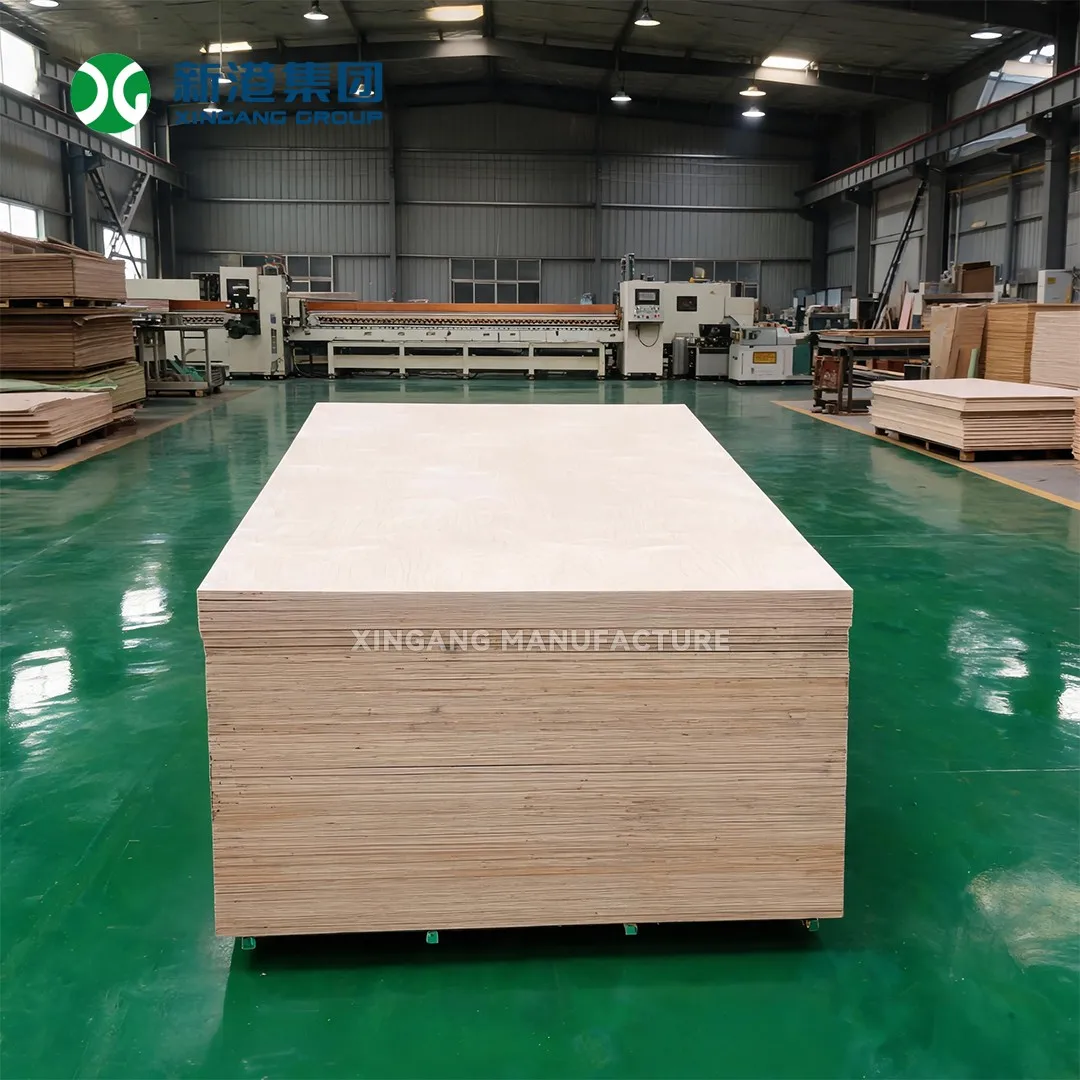

Factory & Product Gallery
Precision manufacturing at scale.
Need CNC-Ready Birch Plywood?
Tell us your panel size, thickness, and quantity - we'll quote within 24 hours.
