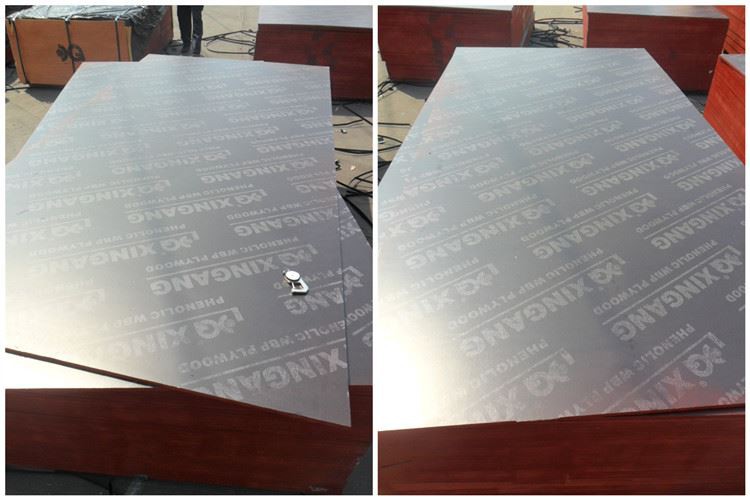

4'x8' Shuttering Phenolic Board for Construction
Brand name: XINGANG
Size: 1220x2440mm, 1250x2500 or customized dimension
Glue: Phenolic WBP
Core: Birch,poplar,hardwood,combi
Film: Dynea film, Chinese film
Color: Brown/black/red/yellow
Send Inquiry
Product Details of4'x8' Shuttering Phenolic Board for Construction
Tested Item Type: Film faced plywood, full birch
TECHNICAL SPECIFICATION
|
Sr |
Property |
Unit |
Test Method |
Value of Test |
Result |
|
|
1. |
Moisture Content |
% |
EN322 |
7.8 |
Check out |
|
|
2. |
Density |
Kg/m3 |
EN323 |
690 |
Check out |
|
|
3. |
Bonding Quality |
Bonding Quality |
Mpa |
EN314 |
Max:1.85 |
Check out |
|
Damage Rate |
% |
|
94% |
Check out |
||
|
4. |
Bending Modulus of Elasticity |
Longitudinal |
Mpa |
EN310 |
9610 |
Check out |
|
Lateral |
7360 |
Check out |
||||
|
5. |
Bending Strength N/mm |
Longitudinal |
Mpa |
79 |
Check out |
|
|
Lateral |
77.3 |
Check out |
||||
|
Cycle life: 30-50 repeated using times according to projects by formwork system |
||||||
ADVANTAGES OF FILM FACED PLYWOOD:
1. Easy To Cut: The plywood is easy to cut, so according to the construction, the formwork could be cut into the required size. 9/12/15/18/21mm Film Facedri
2. Re-used: Phenolic film faced plywood could be used 30-50 times.
3. Multi Using: Film faced plywood could be used for wall, slab, column, beam and bridge concrete pouring etc..
4. No Deformation: Film faced plywood is also whole but not deformation and chipping after 72 hours cooking in boiling water.
5. High Quality Film: Film faced plywood is filmed by Dynea brown or black film imported from Finland, it protect the formwork surface from the corrosion and makes the formwork durable, improves the flatness of the concrete surface and makes the concrete surface save the second time plastering, so it could save a lot cost of construction.
FAQ
Q1. Can I order different models to be one container?
A: Surely, different models can be fixed into one container.
Q2. Do you have products in stock?
A: Mostly no. All products are to be produced according to your order including samples.
Q4. How about your delivery time?
A: Generally, it takes 10 to 20 days to finish an order. Exact delivery time would be confirmed by further communication.
Q5. Can you produce according to the samples?
A: Yes, we can also producing according to technical drawing.
High technology and strong research ability kept us shining among the best manufacturers, and always striving to be better!
First class production lines, and leading manufacturing capacity...
Professionalism reflects in every detail.
In the Guangzhou Canton Fair, we exhibit in the 1st Phase(15-19 April/October), 2 times every year.
We also exhibit abroad for different markets.
Welcome to focus when we post the latest fair and exhibition schedule!
