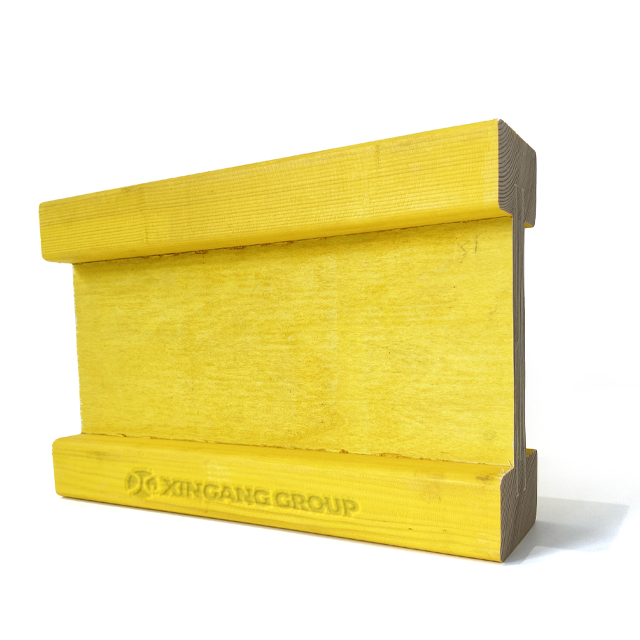

H20 Timber Beam With High-quality Glue
Product description
| Products name | H-BEAM,I-JOINT(BEAM FOR FORMWORK) |
| Weight | 4.8kgs per meter |
| Shear Resistance (V) | 38KN |
| Bending Resistance (M) | 25KNm |
| Bearing Resistance(Rb) | 70KN |
| Bending Stiffness(EI) | 460KNm2 |
| Length |
1.0-6.3m |

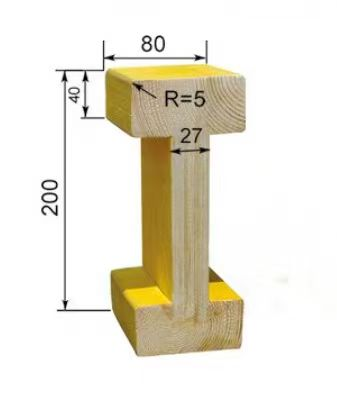

| Standard Size | 20cm(height) ×8cm(width)×4cm (flange thickness)×27 mm(web thickness) |
| Flange | Spruce or pine |
| Web | Eucalyptus and poplar core plywood |
RAW MATERIAL ADVANTAGES -IMPORTED PINE WOOD
Durable and sturdy New Zealand radiation pine
1.New Zealand imported large-diameter pine, with a coarse and uniform structure, peeled and washed for processing ,Afterwards, the board is pure and free of impurities, emitting natural wood rosin.
2.New Zealand radiation pine has strong plasticity, good stability, and flexible wood texture.
3.The processed finished board has a uniform density, less impurities, low density, high strength, durability, and is easy to process.
Asia United High Precision Paving Belt Slow Exhaust Pre pressure System
1. High paving accuracy, reduces glue solidification, improves surface quality of slab.
2. Uniform and smooth paving density without impurities.
3. Leveling system sorts and flattens the process of forming slab, achieving automatic adjustment of slab thickness;
4. The high-speed downward slow exhaust pre pressing system of the slab ensures that there are no pattern defects on the surface of the slab.
Asia United Ultra High Speed Continuous Flat Press
1.Preheating and steam spraying system enhances the strength of slab damage, improves production capacity, and quickly discharges air from the slab;
2.The flexible inlet section of the adjustable press ensures smooth entry of the slab at high speed, perfect surface quality of the product, and 3.controllable high-density layer;
High precision plate thickness control, with a deviation within 0.01mm and true work displayed within millimeters.
Products Display
This industry
The entire Xingang Industrial park is located in Lingang Industry District, which is covering an area of more than 400000m2.
Shandong Xingang Group has more than 3000 employees and 150 sets of world-class production equipments. The annual output of all wood products is more than 300000m3 and formwork product is over 20000tons.
